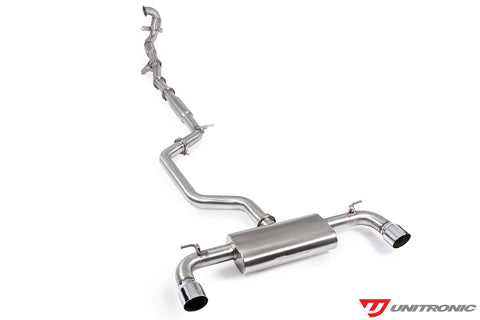

Unitronic Turbo-Back for MK7 GTI MQB (UH026-EXA)

  • Sale
  • Regular price $2,417.99 CAD


Unitronic is pleased to present its 3" Performance Turbo-Back Exhaust System for MK7 GTIs equipped with the 2.0L TSI EA888 Gen 3 MQB engine.

Featuring TIG welded T304 Stainless Steel CNC mandrel bent construction, stainless steel corrugated flex section, high flow 200-cell metallic catalytic converter, and a straight-through, free flowing design; Unitronic's Turbo-Back Exhaust Systems are designed to remove the factory exhaust restrictions to unleash the full potential of the engine.

Like all of Unitronic's Performance Exhaust Systems, a unique v-band fastener system, using T316 Stainless Steel flanges was utilized to ensure a leak proof connection every time. This is achieved through a locking ring on all Unitronic v-band flanges to guarantee a centric alignment of the two flanges. Unitronic's mufflers feature a high density, high temperature glass fiber packing and are stamped with the Unitronic logo.

These attributes combined ensure maximum performance, while maintaining a comfortable and unobtrusive tone inside the cabin. Exiting at the rear, exhaust gasses pass through dual 4" slash cut tips and engraved with the Unitronic logo.

Features / Benefits

  • 3-inch T304 Stainless Steel Mandrel Bent Tubing:
    Quality Material that will not rust and will outlast your vehicle
  • T316 stainless steel v-band flange flanges:
    Durable and rust proof
  • Direct bolt-on fitment with OEM mounting locations:
    Use all Factory mounting location on the engine and on front subframe
  • Locked V-Band Rotation:
    Securing downpipe to the engine assure no possible v-band flange rotation during hard acceleration.
  • 80mm to 76.2mm turbo to downpipe transition:
    Assure a smooth flow transition between Turbine housing and 3” Stainless steel piping
  • Factory Catalyst Position
    Assure maximum efficiency of the catalytic converter in line with OEM catalytic converter warm up strategy.
  • 200-cell metallic matrix high-flow catalyst:
    Highly durable Matrix allowing minimal power loss while assuring maximum efficiency.
  • OEM-inspired catalytic converter heat shield:
    Help to reduce radiant heat in the engine bay
  • OEM Oxygen Sensor Replacement
    No need for O2 sensor extension or modification of the wiring harness.
  • 8-inch Corrugated Stainless Steel Flex Section
    High quality flex that will stay leak proof for years. It allows engine movement without stressing the factory rubber mounts.
  • TIG Welded Construction:
    Professionally hand welded to ensure longevity, resistance and leak proof.
  • Unique V-Band Fastening System Featuring Clampco® Clamps:
    Maintain a perfect alignment every time while insuring a leak proof connection every time. Fully reusable and quick install.
  • Sound Reflection Chamber Technology:
    Sound reflection chamber used to cancel unwanted sound frequency and ensure a deep tone.
  • Sound Absorbtion Technology:
    Perforated chamber packed with High quality and durable high temperature Fiberglass wool. Assure a deep tone and unwanted frequency absorption.
  • Straight-Through, Free Flowing Muffler Design:
    Optimal performance achieved by removing restriction and reducing back pressure.
  • Polished 4-inch Slash Cut Exhaust Tips:
    Mirror polished tips engraved with the Unitronic Logo
  • Unitronic Lifetime Warranty:
    Unitronic Performance Hardware Products carry a Limited Lifetime Warranty.



Hardware Included

  • Unitronic 3" Catatlytic Converter Section
  • Unitronic 3" Flex Section
  • Unitronic 3" Axle Section
  • Unitronic 3" Mid-Pipe w/ Resonator
  • Unitronic 3" Rear Section w/ Muffler
  • Unitronic 3" V-Band Exhaust Clamps (x4)
  • Unitronic 3" V-Band Sealing Rings
  • Unitronic 3" V-Band Adapter Link
  • All Necessary Hardware Included

Required Software

  • Stage 2
