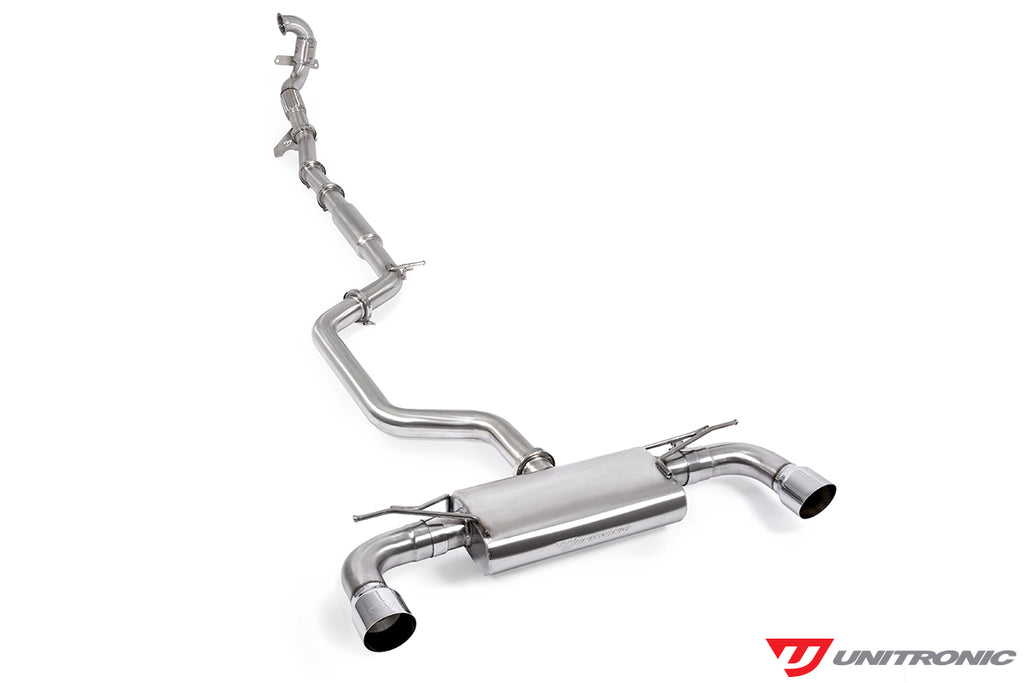

Unitronic Turbo-Back for MK7.5 GTI MQB - Chrome Tips (UH047-EXA)

  • Sale
  • Regular price $2,417.99


Unitronic Turbo-Back Exhaust System for the MK7.5 GTI equipped with the 2.0 TSI EA888 Gen 3 MQB engine features 3-inch T304 Stainless Steel mandrel bent tubing, high density, high temperature glass fiber packed mufflers, polished or black 4" slash cut exhaust tips and high quality v-band fasteners with T316 Stainless Steel flanges. These attributes combined with extensive R and D testing, help ensure perfect fitment and maximum performance, while maintaining a comfortable and unobtrusive exhaust tone inside the cabin. It's composed of Unitronic Downpipe for 2.0 TSI EA888(FWD) and Unitronic Cat-Back for MK7.5 GTI.

This specific assembly includes the 4'' Polished Chrome Slash Cut Tips option.

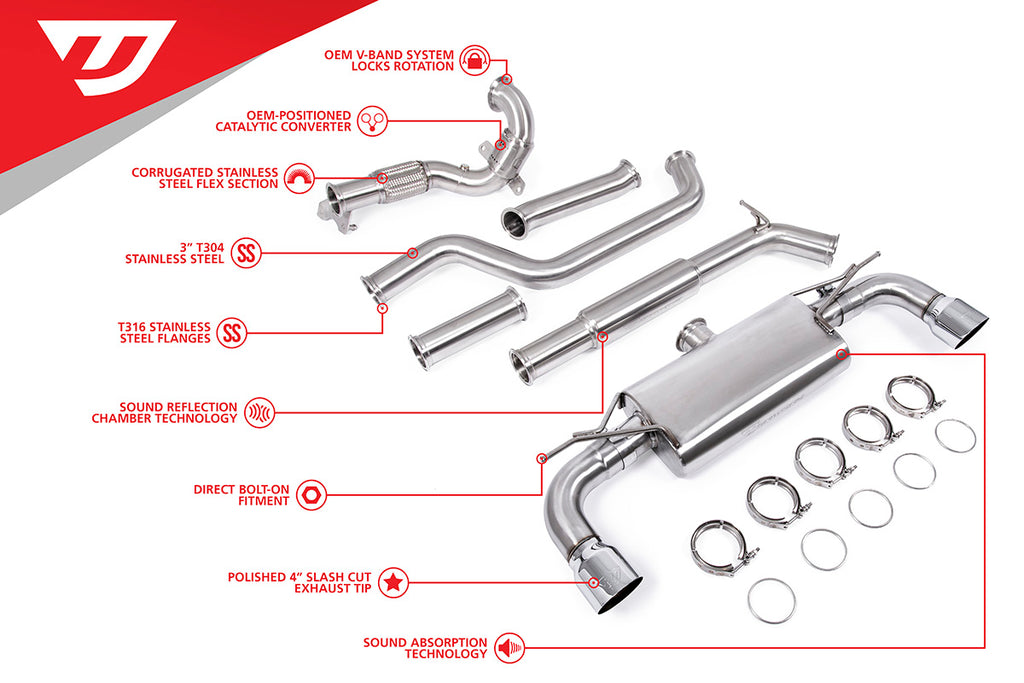

Features / Benefits

  • 3-inch T304 Stainless Steel Tubing:
    Quality Material that will not rust and will outlast your vehicle
  • T316 stainless steel v-band flanges:
    Durable and rust proof, and cnc machined
  • Direct bolt-on fitment:
    Use all factory exhaust hanger and doesn’t require any modification or adjustment
  • TIG Welded Construction:
    Professionally hand welded to ensure longevity, resistance and leak proof.

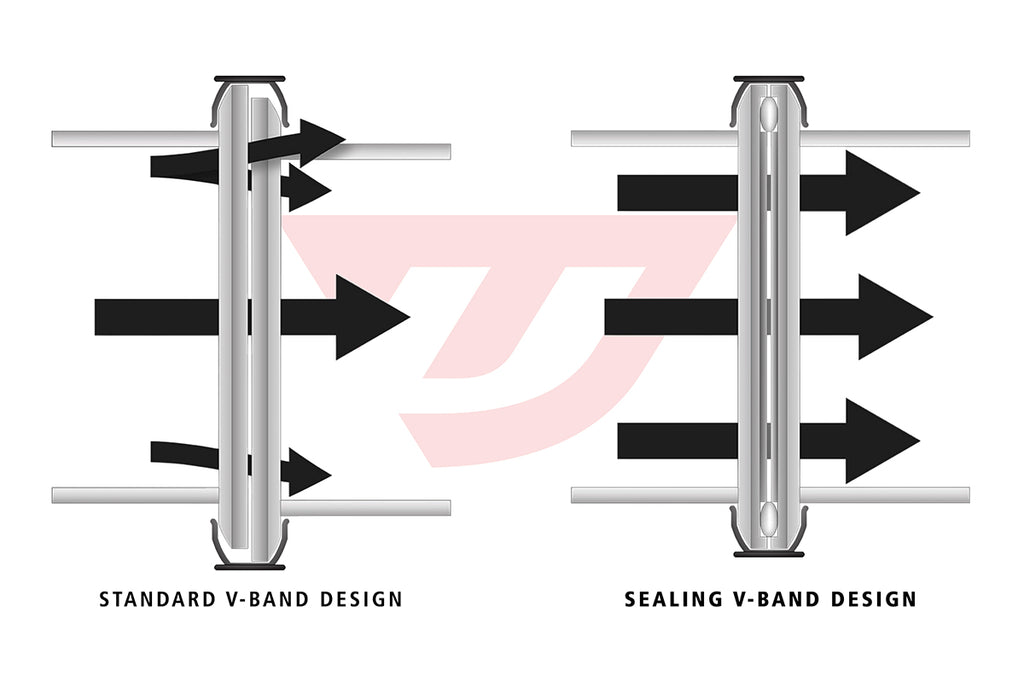

  • Unique V-Band Fastening System Featuring Clampco® Clamps:
    Maintain a perfect alignment every time while insuring a leak proof connection every time. Fully reusable and quick install.
  • Locked V-Band Rotation:
    Securing downpipe to the engine assure no possible v-band flange rotation during hard acceleration.
  • Factory Catalyst Position
    Assure maximum efficiency of the catalytic converter in line with OEM catalytic converter warm up strategy.
  • 200-cell metallic matrix high-flow catalyst:
    Highly durable Matrix allowing minimal power loss while assuring maximum efficiency.
  • OEM-inspired catalytic converter heat shield:
    Help to reduce radiant heat in the engine bay
  • 80mm to 76.2mm turbo to downpipe transition:
    Assure a smooth flow transition between Turbine housing and 3” Stainless steel piping
  • OEM Oxygen Sensor Placement
    No need for O2 sensor extension or modification of the wiring harness.
  • 8-inch Corrugated Stainless Steel Flex Section
    High quality flex that will stay leak proof for years. It allows engine movement without stressing the factory rubber mounts.
  • Straight-Through, Free Flowing Muffler Design:
    Optimal performance achieved by removing restriction and reducing back pressure.
  • Universal Fitment
    Come with a 3” V-Band Straight link to match Unitronic downpipe.
  • Sound Reflection Chamber Technology:
    Sound reflection chamber used to cancel unwanted sound frequency and ensure a deep tone.
  • Sound Absorbtion Technology:
    Perforated chamber packed with High quality and durable high temperature Fiberglass wool. Assure a deep tone and unwanted frequency absorption.

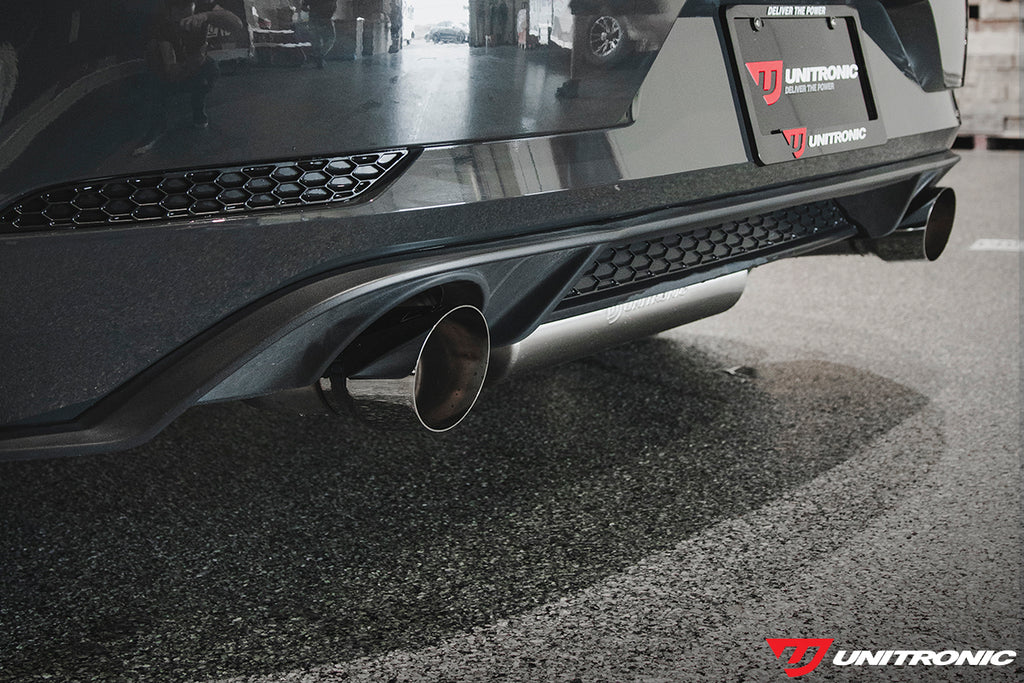

  • Polished 4-inch Slash Cut Exhaust Tips:
    Mirror polished tips engraved with the Unitronic Logo
  • Optional Black 4-inch Slash Cut Exhaust Tips:
    Also engraved with the Unitronic logo, these optional tips are easy to swap using a slip on design.



Hardware Included

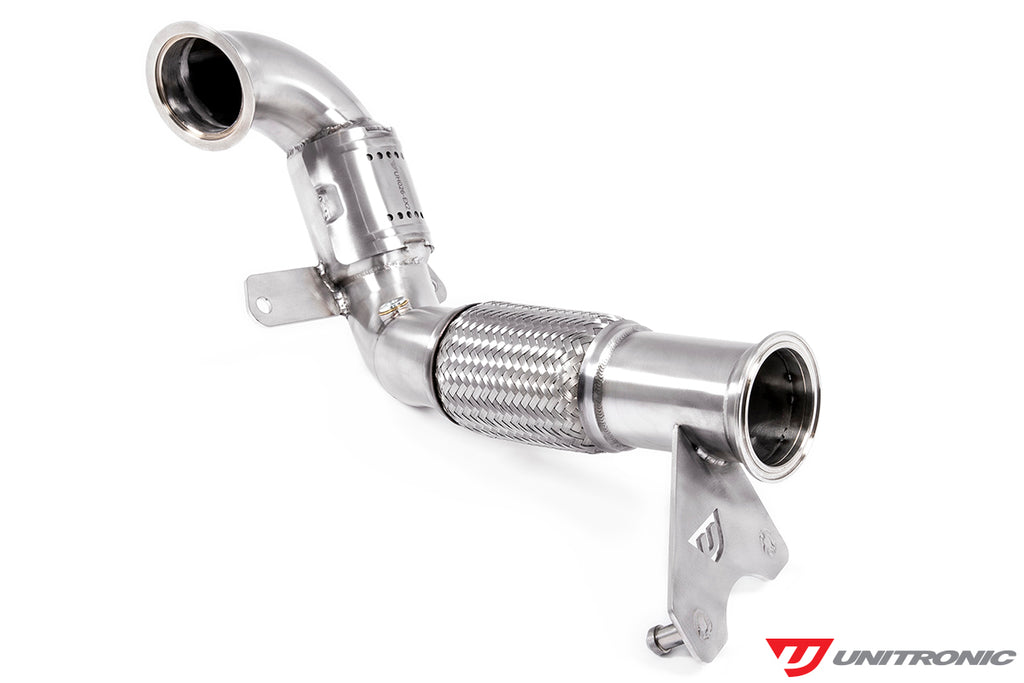

  • Unitronic 3" Catatlytic Converter and Flex Section
  • Unitronic 3" Midpipe Section
  • Unitronic 3" Axle Section
  • Unitronic 3" Mid-Pipe w/ Resonator
  • Unitronic 3" Rear Section w/ Muffler
  • Unitronic 4" Polished Chrome Slash Cut Tips
  • Unitronic 3" V-Band Exhaust Clamps
  • Unitronic 3" V-Band Sealing Rings
  • Unitronic 3" V-Band Straight Adapter
  • All Necessary Hardware Included
